Lazer Lamps Roof Mounted Linear 42 Elite Light Bar - Land Rover Defender (2020+)

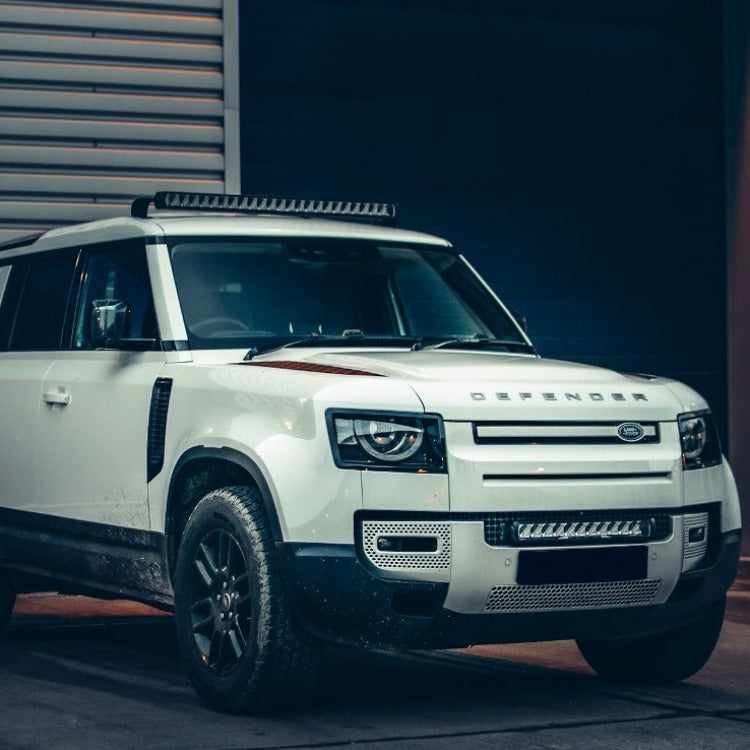

Specifically engineered for the Land Rover Defender (2020+), the Lazer Lamps Roof Mounting Kits, comprises stainless steel brackets that fix to the vehicle’s roof ditch where there is already factory drilled mounting holes and are optimised for either our Linear-42 (Standard or Elite) or Triple-R 24 Elite off-road LED spotlights. Included with the mounting brackets is a length of cable for modifying the relevant Lazer wiring kit to enable connection of your LED light bar without the need to drill any bodywork, for a quick, simple, and tidy finished install.

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, spacers, of varying lengths, are provided to aid positioning.

The installation of the brackets to your vehicle is completed using anti-theft fasteners fixed within the roof ditch location either side of the Defender’s roof. Additional wiring extension and heat-shrink butt connectors are also supplied to help facilitate running the cable from the engine bay, up through the ‘A’ pillar and roof gutter, for a clean and tidy install.

When mounting the ECE Reg112 approved Linear-42 (Standard only) to activate with the vehicle’s high beams, if the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances, it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.

Please note: The Roof Mounting Kits are not compatible with vehicles with panoramic sunroof.

Complete one-stop solution for roof-mounting on Land Rover Defender (2020+)

Optimised for either Triple-R 24 Elite or Linear-42 LED driving lights

Completed without the need to drill bodywork

Mounting brackets made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Includes assortment of A2 stainless steel fixings with countersunk head

Spacers facilitate positioning of different length LED light bars

M6 fasteners facilitate mounting brackets to the roof ditch on the vehicle

Manufactured in the UK

Technical Specifications
  Linear-42
Elite
Linear-42 Triple-R 24 Elite  Triple-R 24 Elite+
(E-Boost /
E-Mark)
Voltage Range 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours  50,000 hours
Weight 3.5 kg 3.5 kg 4.5 kg 4.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux 33300 Lm 15750 Lm 27060 Lm 24056 /
4090 Lm
Total Driver 'FOV' Flux † 23909 Lm 11214 Lm 17833 Lm 14 928 /
2538 Lm
Colour Temperature 5000K 5000k 5000k 5000K
Number of High Output LEDs 84 42 24 48
Power Consumption 355 W 147 W 270 W 256 W / 37.8 W
Current Draw (at 14.4V) 24.7 A 10.2 A 18.75 A 17.9 A / 2.6 A
CERTIFICATION
High Beam N/A ECE R112 N/A ECE R149
ECE Reference N/A 50 N/A TBC
PHOTOMETRIC DATA
Horizontal Beam Angle 60° 50o 30o 54°
0.25 lx Line 1530m 984m 2352m 2145m / 853m
0.5 lx Line 1082m 696m 1663m 1517m / 603m
1 lx Line 765m 492m 1176m 1072m / 427m
3 lx Line 442m 284m 679m 619m / 246m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 2x Stainless Steel Mounting Bracket (LH/RH)
  • 1x Anti-theft Fastener Set (various sizes)
  • 1x Spacer Set (various sizes)
  • 4x M6 Anti-Theft Fasteners
  • 4x M8 Roof Ditch Spacers
  • 1x 50cm wiring extension
